Steel Wire Traveling Crane Cable-S2-05VV-F

Primarily used for powering and controlling electric hoists, overhead cranes, gantry cranes, and other lifting

equipment, especially those with pendant control stations

Steel Wire Traveling Crane Cable-S2-05VV-F

Flame Retardance (Single Vertical Wire Test)	EN 60332-1-2

300/500V

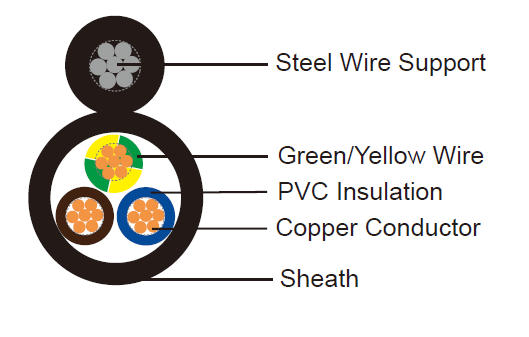

Conductor: Flexible copper wire according to EN 60228 class 5.

Insulation: Special PVC compound

Filling:Rip cord and others.

Sheath:Special PVC or rubber compound

Support:Steel Wire

An oxygen-free copper core for conductivity and flame-retardant insulation for safety. The inclusion of steel wire

ropes embedded within the cable provides strain relief and enhanced durability for heavy-duty applications

where the cable experiences frequent movement or suspension.

Insulation Colour.

No. of cores	Colour of coresb
No. of cores	Protective	Live
3 Cores	Yellow/Green	Blue	Brown
4 Cores	Yellow/Green	-	Brown	Black	Grey
4 Coresa	Yellow/Green	Blue	Brown	Black
5 Cores	Yellow/Green	Blue	Brown	Black	Grey
a For certain applications only. b In this table an uninsulated concentric conductor, such as a metallic sheath, armour or screen wire, is not regarded as a core. A concentric conductor is identified by its position and, therefore, need not be identified by colour.

No. of cores	Colour of coresb
2 Cores	Blue	Brown
3 Cores	-	Brown	Black	Grey
3 Coresa	Blue	Brown	Black
4 Cores	Blue	Brown	Black	Grey
5 Cores	Blue	Brown	Black	Grey	Black
a For certain applications only. b In this table an uninsulated concentric conductor, such as a metallic sheath, armour or screen wire, is not regarded as a core. A concentric conductor is identified by its position and, therefore, need not be identified by colour.

sheath colour: Black, other colours can be offered upon request.

Maximum temperature range during operation (PVc): 70°C

Maximum short circuit temperature (5 seconds): 160°C

Maximum safe tensile: 300N
